| Category | ZIP 24 PRO |
|---|---|
| Overall Dimensions (L × W × H) | 1840 × 725 × 1040 mm (72.4 × 28.5 × 40.9 inches) |
| Net Weight | 30.8 kg (≈ 67.9 lbs) |
| Gross Weight | 36.6 kg (≈ 80.7 lbs) |
| Range | ≈38 km (≈ 23.6 miles) |
| Ground Clearance | 315 mm (≈ 12.4 in) |
| Wheelbase | 1205 mm (≈ 47.4 in) |
| Rated Power | 1000 W |
| Peak Power | 1500 W |
| Battery Specification | 48 V 15 Ah, 21700 lithium cells |
| Battery Certification | UN 38.3 / MSDS / UL 2271 / UL 2580 |
| Charger | 110V–120V AC, 60 Hz (US Standard Plug) |
| Charging Time | ≈6–8 hours |
| Compliance (USA) | UL Certified Components / FCC Compliance |
| Transport Compliance | UN 38.3 Certified for Lithium Battery Transport |
| Frame Material | Aluminum Alloy 6061 (AL6061) |
| Rear Swingarm Material | One-piece forged AL6061 aluminum |
| Front Tire | 24" × 2.5 Off-road pattern |
| Rear Tire | 24" × 2.5 Off-road pattern |
| Front Suspension | RST suspension with adjustable compression and rebound |
| Front Suspension Travel (Tr) | 140 mm (≈ 5.5 in) |
| Rear Suspension | RST air shock absorber |
| Rear Suspension Travel (Tf) | 50 mm (≈ 2.0 in) |
| Front Brake | Ø203 mm hydraulic disc brake, 4-piston caliper |
| Rear Brake | Ø180 mm hydraulic disc brake, 4-piston caliper |
| Display | TFT Display |
Give your customers a taste of thrilling off-road experiences. Partner with us to bring excitement and innovation to your lineup.

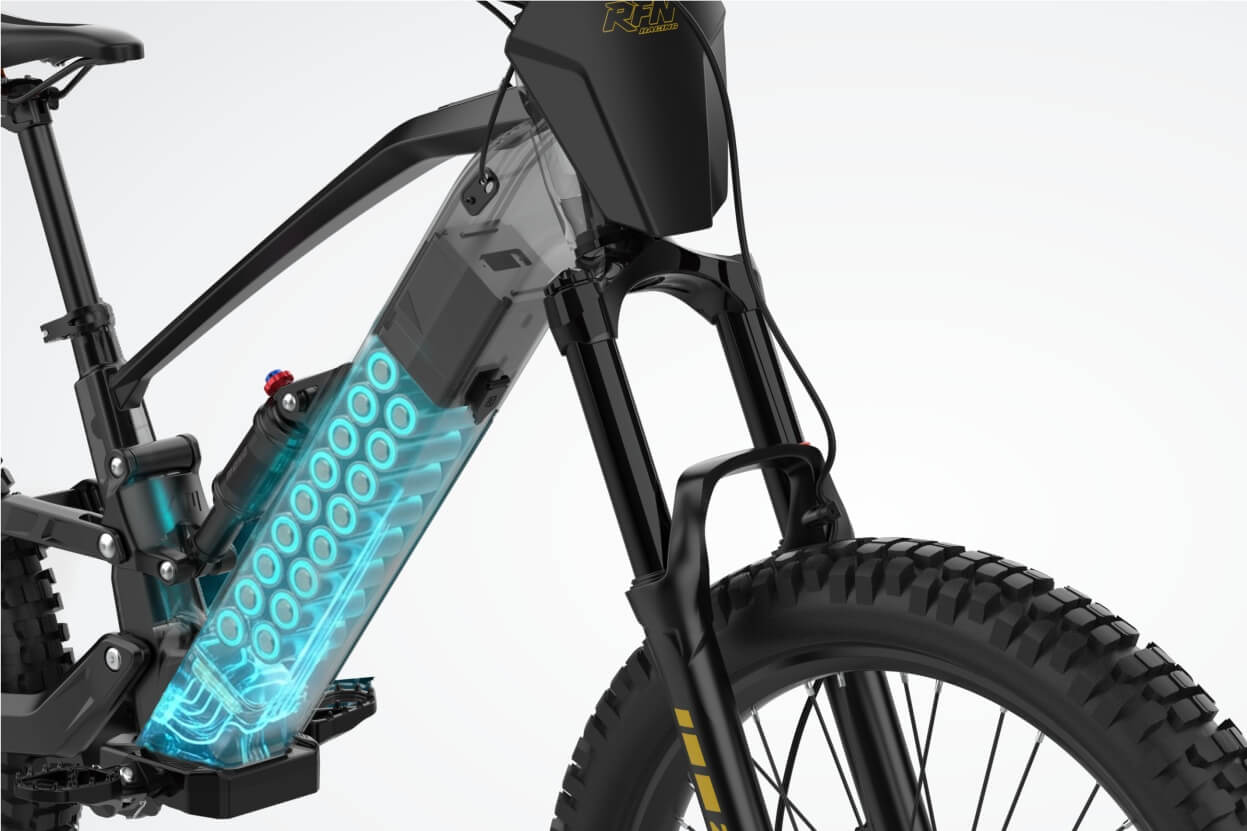

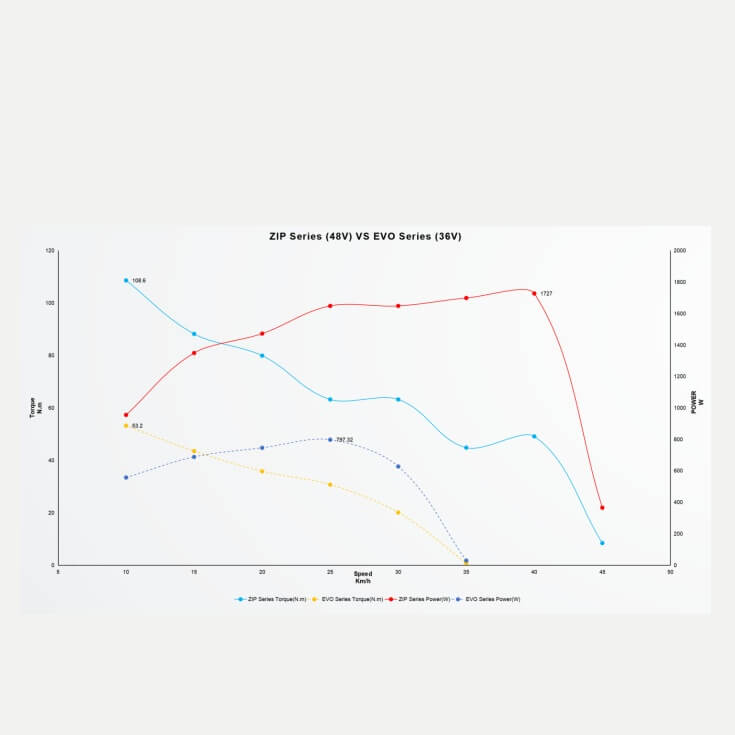

1500W peak power and 132 N·m torque from a high-performance motor, paired with a 48V 15Ah battery (720 Wh, 21700 cells, 5C). Provides stronger acceleration and significantly extended riding range up to 35 km (21.7 mi).

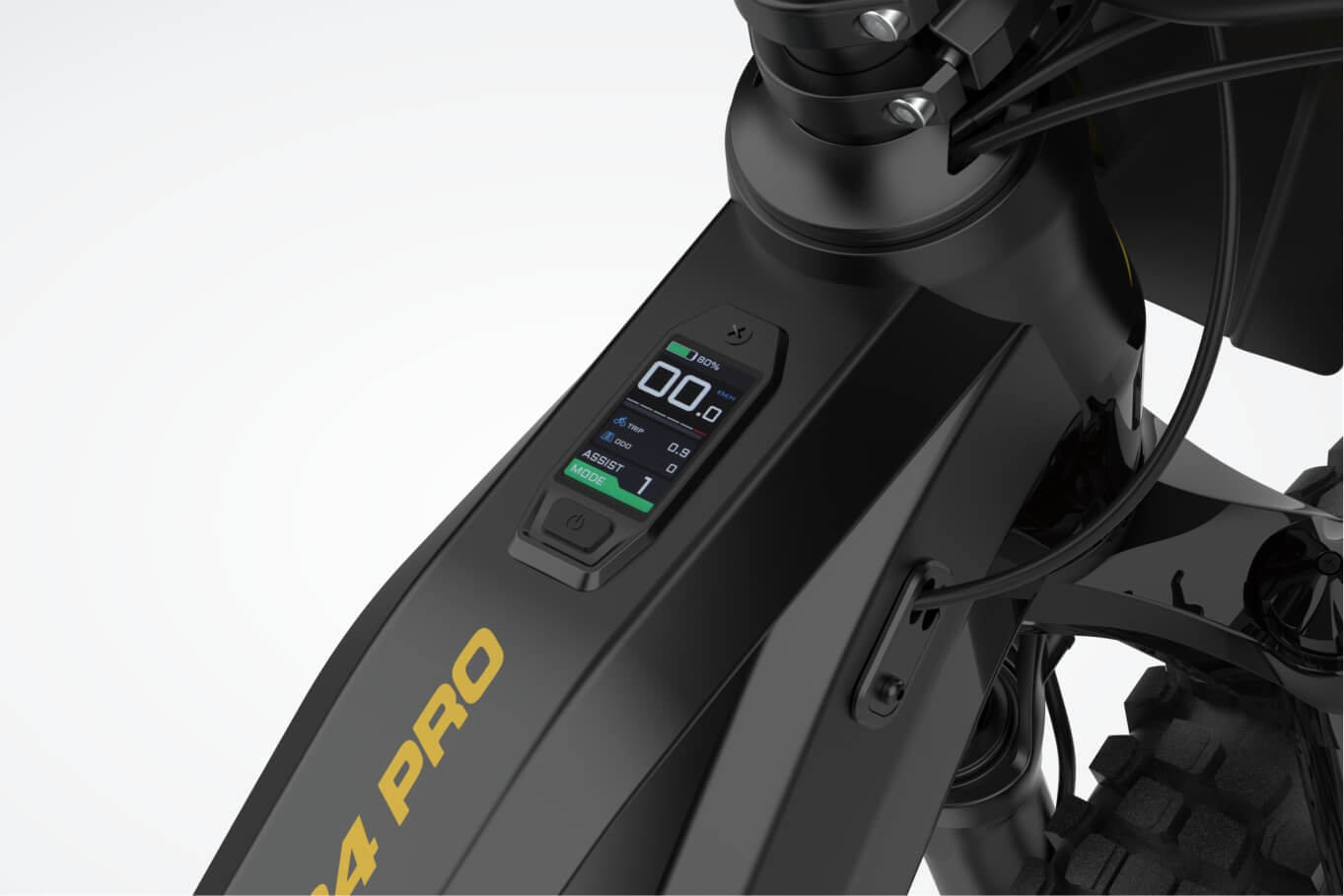

Clearly shows battery level (SOC), speed, and assist level. Supports multiple riding parameter settings to customize for different rider preferences.

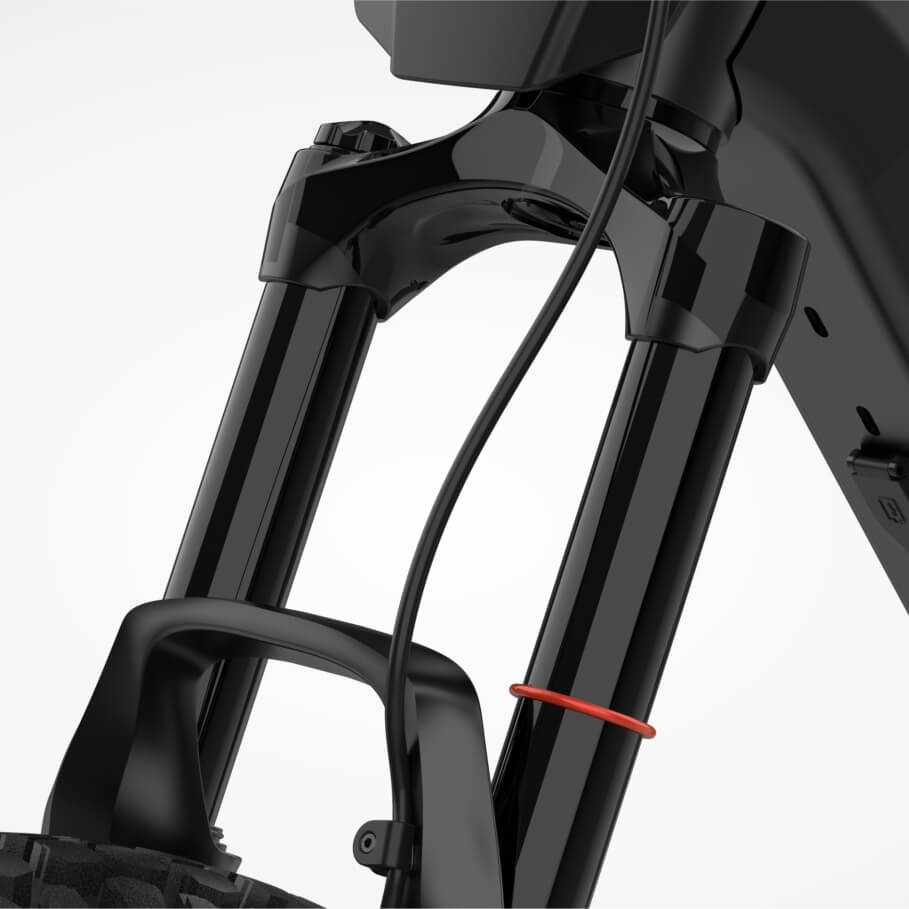

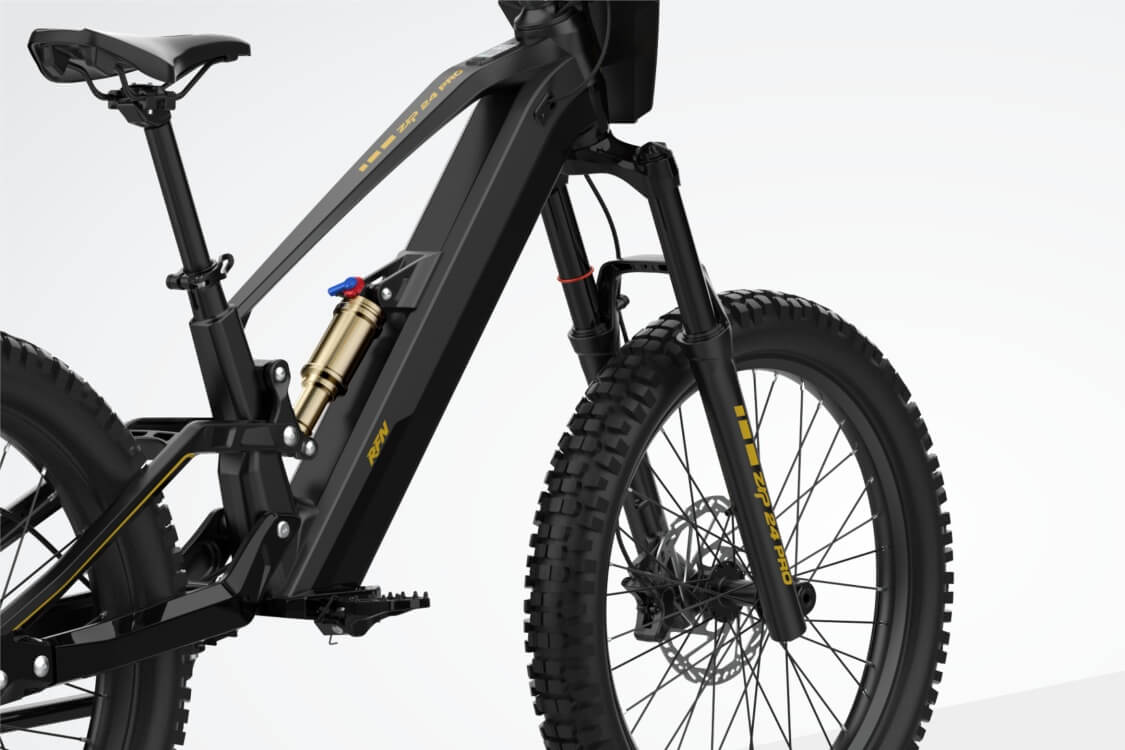

Front and rear suspensions working in harmony, with RST front fork (140 mm travel, compression & rebound adjustment) and RST rear air shock (126 mm travel, oil-air mixed structure with rebound adjustment). Effectively absorbs impacts from complex terrain for a more comfortable and stable ride.
Strong and consistent braking force with linear lever feedback. Maintains stability during long descents and high-frequency braking, using Ø203 mm front and Ø180 mm rear rotors with forged calipers.

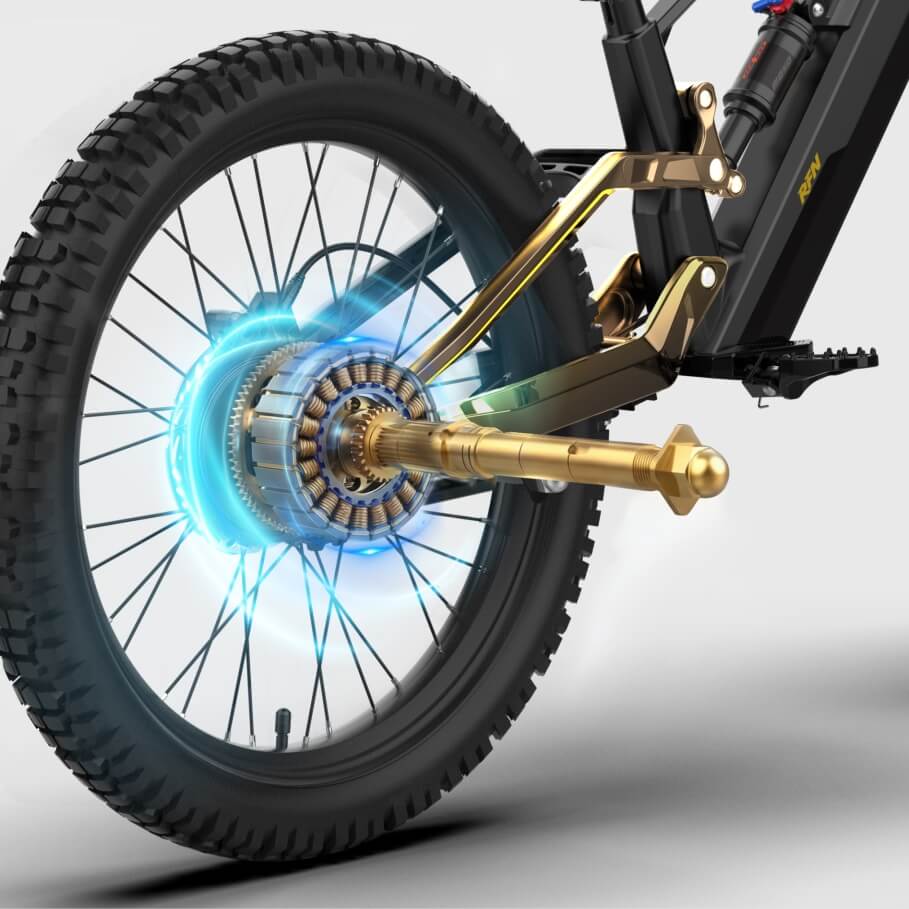

Engineered for high-intensity off-road use, with reinforced rim structure and spokes, enlarged motor axle, and strengthened swingarm. Significantly improves impact resistance and overall frame rigidity.

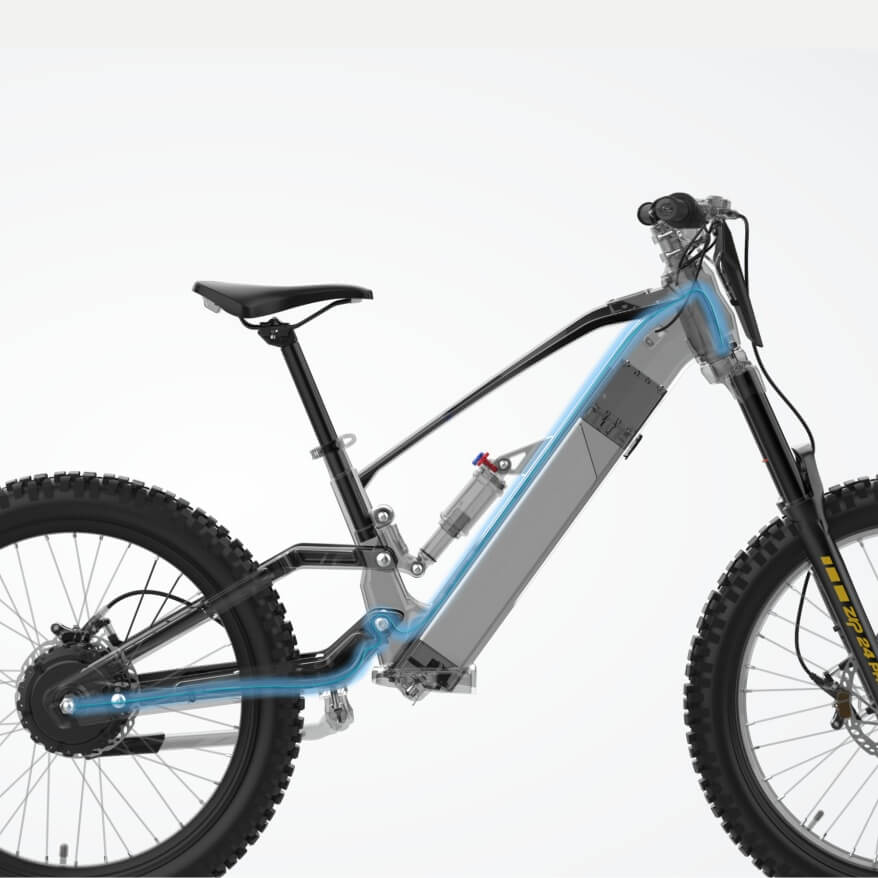

Clean, secure, and premium finish that minimizes exposed wiring. Reduces risks of abrasion, mud, and water intrusion, enhancing reliability in off-road environments while providing a refined appearance.

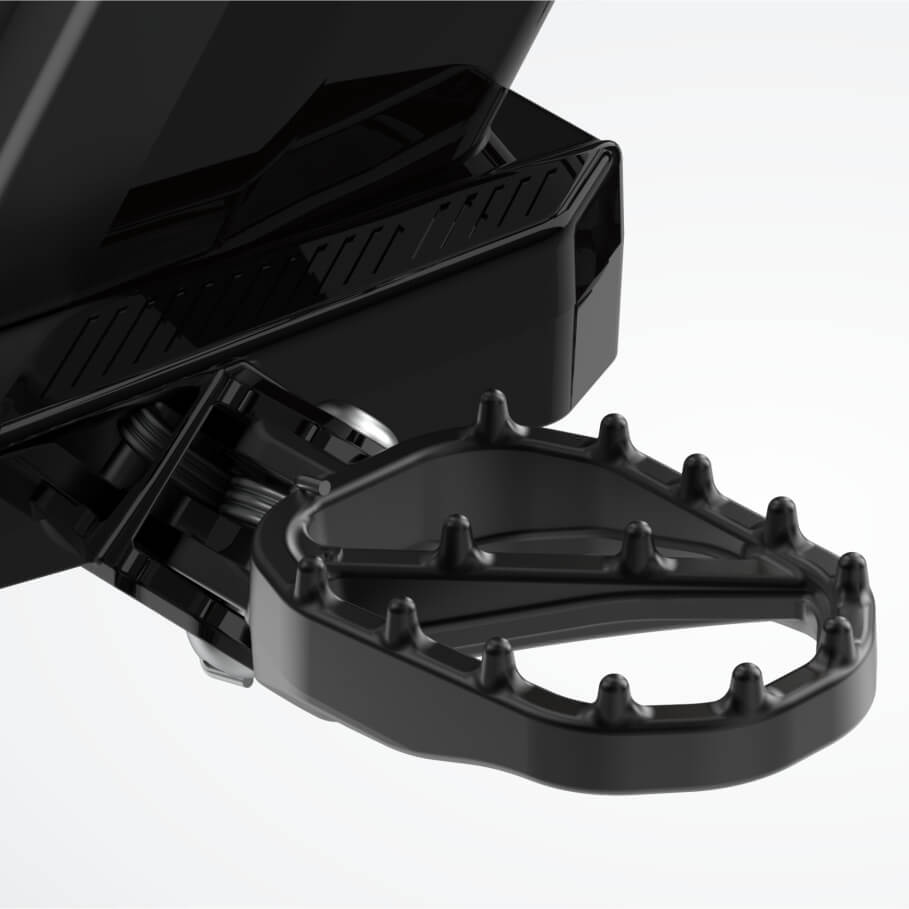

Same footrest design as electric off-road dirt bikes. High-strength aluminum alloy with wide platform for secure support and grip during standing off-road riding.
Waterproof, dustproof, and durable protection for the charging port (charger: AC 100–240V / DC 54V 3A). Shields from water, mud, and debris, improving long-term durability in demanding conditions.

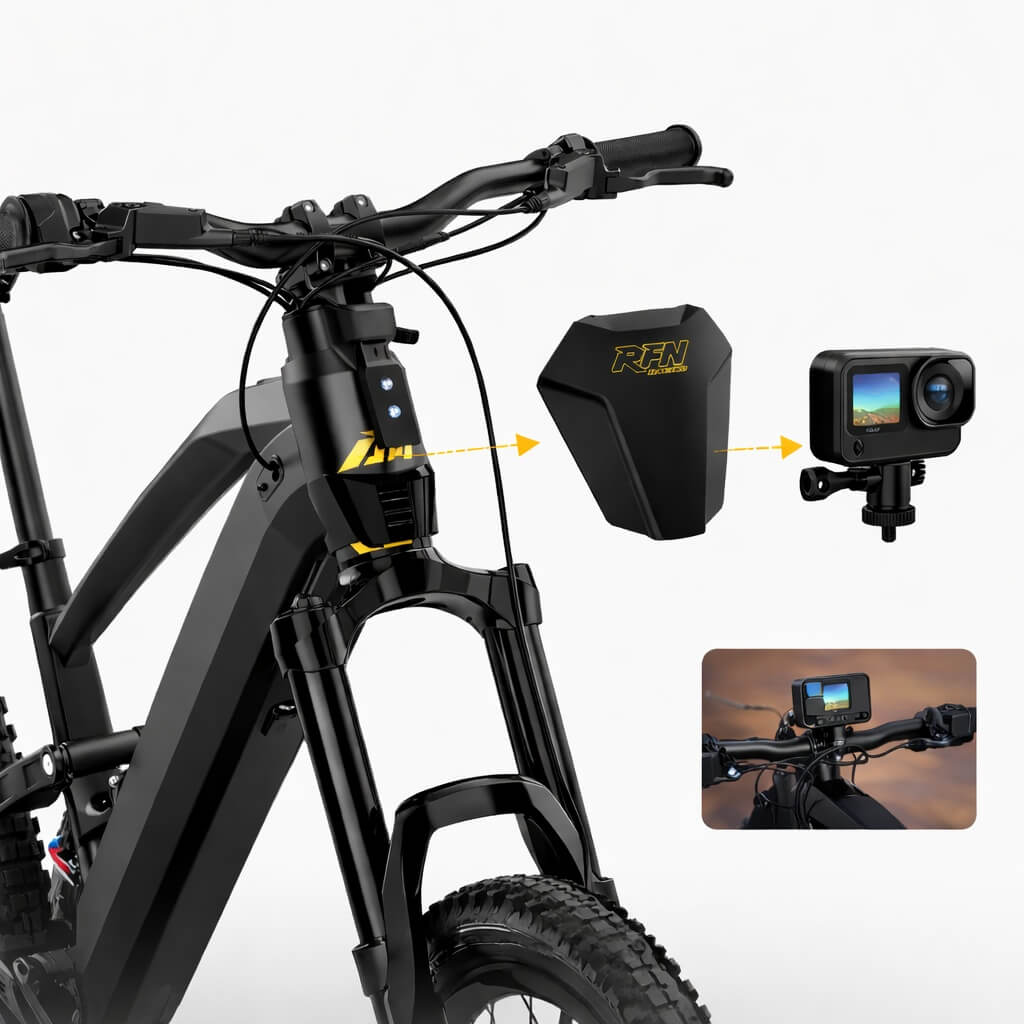

Compatible with GoPro, DJI, or Insta360. Allows quick and secure installation of action cameras to easily capture every off-road riding moment.
Net weight 30.8 kg (67.9 lb), ground clearance 315 mm, wheelbase 1205 mm, maximum load 75 kg. Packaging: 151 × 26 × 85 cm, gross weight 36.6 kg, container loading up to 198pcs/40HQ.
Be the first to offer a unique, high-demand e-bike experience. Connect with us and secure your competitive advantage.
Electric trail and adventure riding is rapidly expanding between urban e-bikes and high-power electric dirt bikes. The ZIP 24 PRO delivers balanced performance with 1500W peak motor, 132 N·m torque, full suspension, and 24” off-road wheels, appealing to riders seeking recreational adventure with approachable handling.
For distributors, this opens access to a fast-growing global niche of recreational and trail-focused riders.
This model sits between entry-level e-bikes and heavy electric dirt bikes, providing off-road-inspired performance without the complexity or cost of professional machines.
Features like reinforced structural components, 4-piston hydraulic brakes, and integrated TFT display clearly differentiate it in the market, helping importers offer a product that stands out in an increasingly competitive segment.
Designed with practical logistics in mind, packaging supports up to 198 units per 40HQ, while a net weight of 30.8 kg ensures manageable shipping. The ZIP 24 PRO comes under the well-established RFN brand, enhancing market credibility, while still offering OEM/private branding options for distributors who prefer their own label.
